Multi Functional Telescopic Arm Forklift
1.Higher efficiency
2.Lower operating costs
3.Safer working environment
4.Wider range of applications
Product Details
Extra-long Boom, Wider Coverage: TEVIS telescopic boom forklift trucks feature an extra-long boom, allowing them to effortlessly reach heights and distances that other equipment cannot, meeting various aerial work requirements.
Powerful Lifting Capacity for Heavy Loads: Equipped with a high-performance hydraulic system, TEVIS telescopic boom forklift trucks deliver exceptional lifting capacity, making them ideal for handling heavy-duty operations with ease.

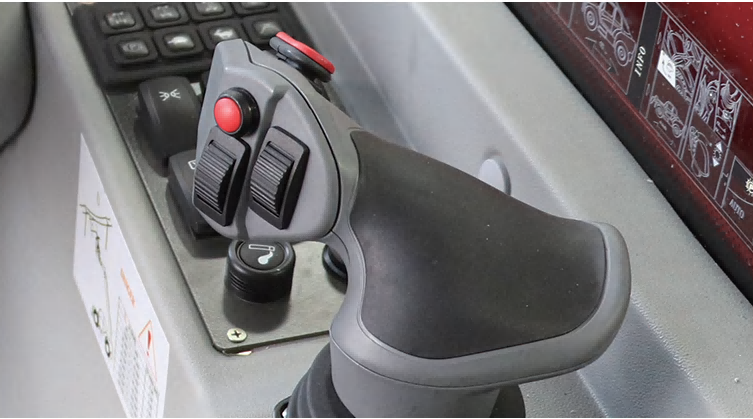

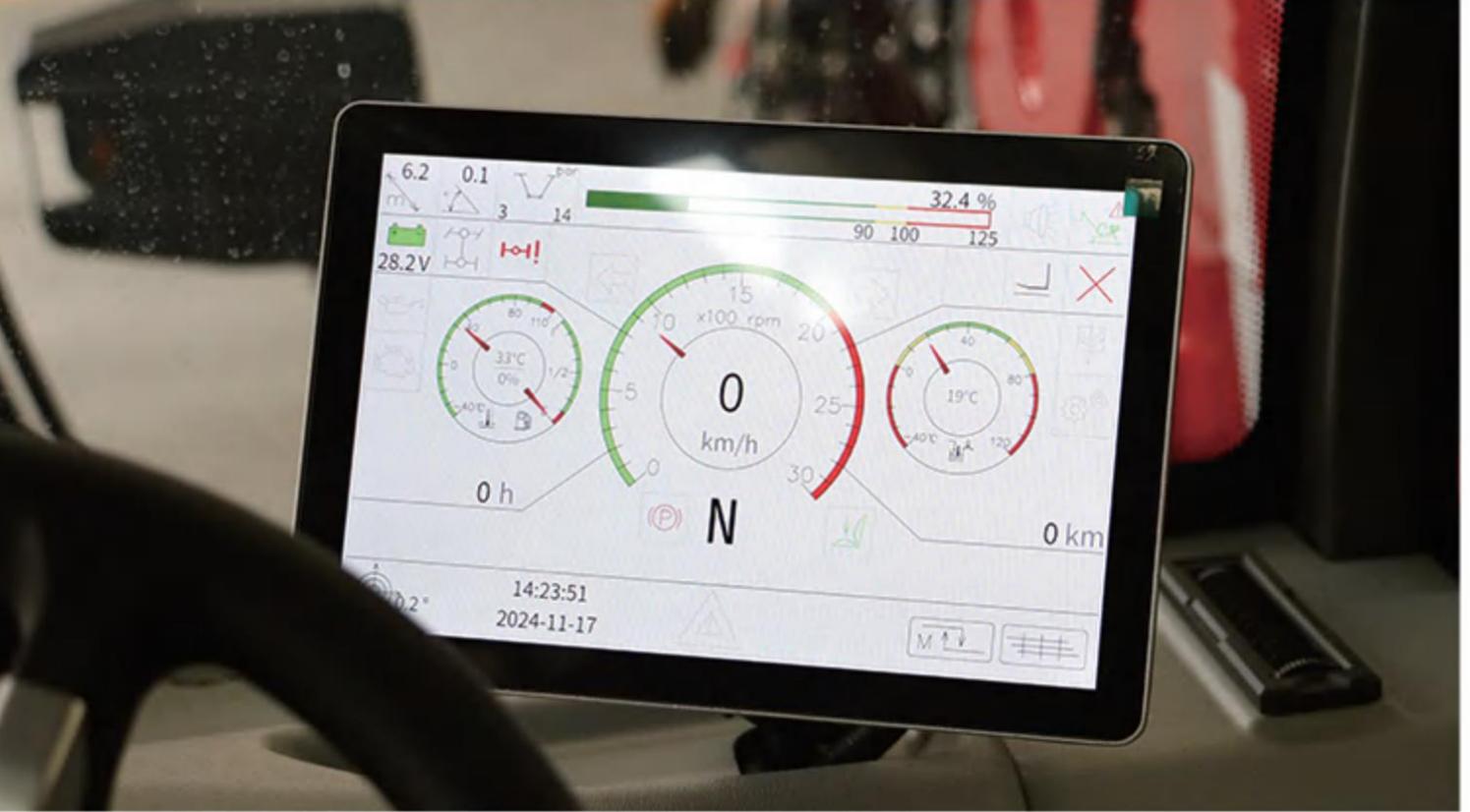

Flexible Control and Precise Positioning: An advanced control system and ergonomic design ensure that TEVIS telescopic boom forklift trucks operate smoothly and position accurately, enabling precise tasks even at high altitudes.
Multiple Attachment Options for Versatile Applications: TEVIS offers a wide range of attachments, including forks, platforms, and baskets, to accommodate different operational needs and maximize versatility.
Durable and Reliable: Constructed with high-strength steel and manufactured using advanced processes, TEVIS telescopic boom forklift trucks maintain stability and reliability even in harsh working conditions.

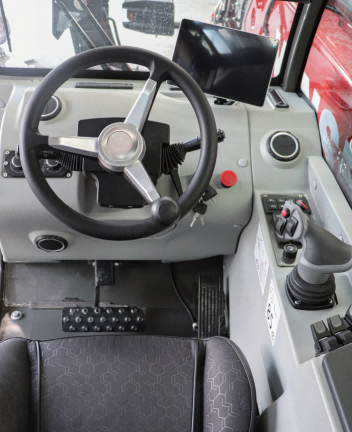

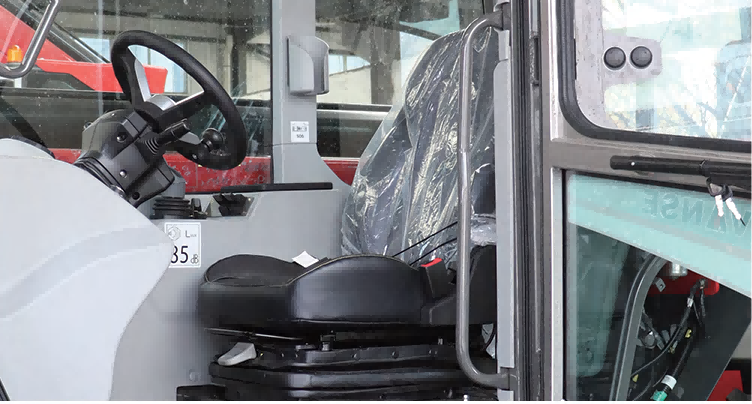

Comfortable and Safe with Human-Centered Design: A spacious cab, ergonomic controls, and comprehensive safety features ensure a comfortable and secure working environment for operators.

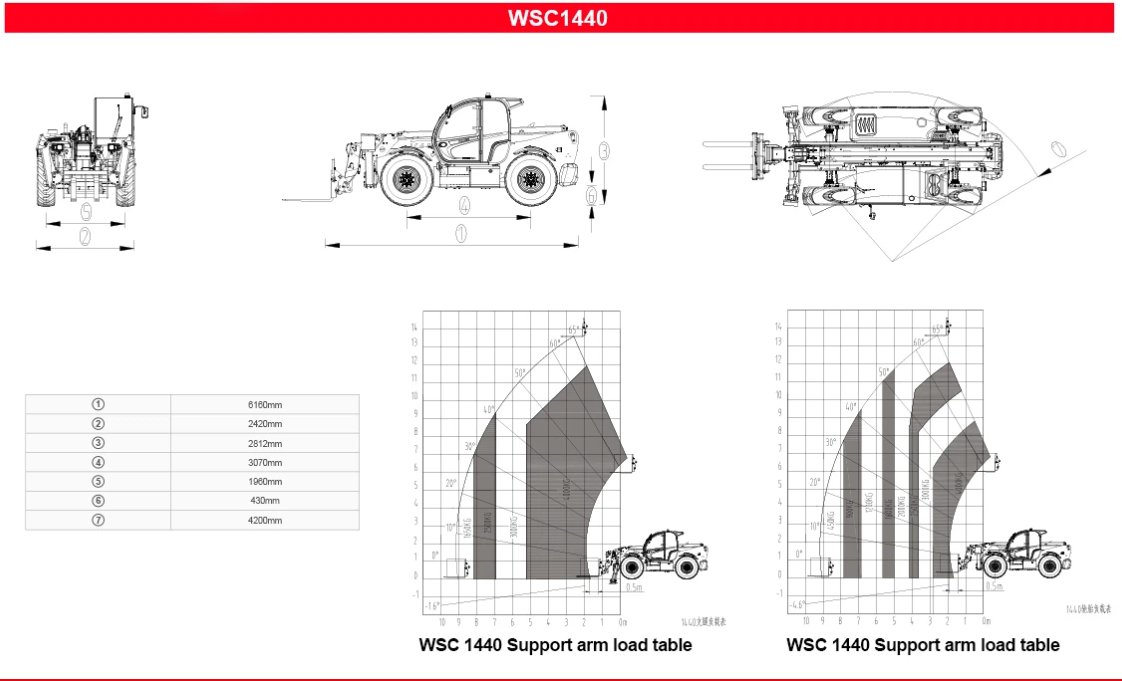

Product Parameters
Telehandler Model | WSC1840 | WSC1440 | WSC740 |
Max. capacity | 4000kg | ||
Max. lifting height | 17.6m | 13.5m | 7m |
Max. outreach | 13.1m | 9.5m | 7.6m |
Overall length to carriage | 6.16m | 6.16m | 5m |
Overall width | 2.42m | 2.42m | 2.33m |
Overall height | 2.7m | 2.7m | 2.35m |
Ground clearance | 0.41m | 0.41m | 0.41m |
Tires type | 440/80R24 | 440/70R24 | |

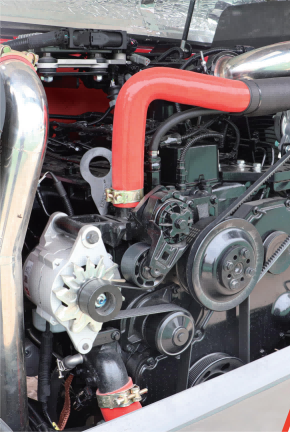

Engine brand | Yuchai/Cummins/Perkins | ||
Cooling method | Water Cooling | Water Cooling | Water Cooling |
Travel speed | 30km/h | 30km/h | 30km/h |
Gradeability | 30° | 32° | |
Parking brake | Automatic | Automatic | Automatic |
Fuel tank | 140L | 95L | |
Hydraulic oil | 180L | ||
Fork length/width/section | 1200x150x50mm | ||
Machine weight | 12500kg | 10800kg | 7600kg |
Product Detail
Application areas of TEVIS telescopic boom forklift:
1.Construction site: building materials handling, aerial equipment installation, facade construction, etc.
2.Warehouse logistics: cargo loading and unloading, shelf access, maintenance of aerial equipment.
3.Municipal construction: street light maintenance, tree trimming, billboard installation.
4.Other fields: electric power maintenance, shipbuilding, airport ground handling, etc.
TEVIS always adheres to customer-oriented, continuous innovation, and is committed to providing customers with efficient, reliable and environmentally friendly construction machinery solutions. Choosing TEVIS is choosing efficiency, reliability and success!
