Loader Skid
1.Heat-Resistant：Performs reliably in 50°C+ heat.
2.Multi-Tool Ready：Fits sweepers, plows & more.
3.Agile & Efficient：Ideal for tight spaces, 50% faster.
4.Low Maintenance：Dust-proof with local parts support.
5.Rated power: 85 kW.
6.The hydraulic oil temperature sensor controls the cooling system.
7.CE certification ensures compliance with European safety standards.
Introduction Of The Loader Skid
In contemporary road maintenance operations, TEVIS skid steer loaders are becoming “versatile assistants” in the maintenance sector due to their flexibility and versatility. The following are the five core advantages of TEVIS skid steer loaders in highway maintenance:
1. Narrow Space Expert
Zero - turn steering, 1.5 m compact width, and side - shift function are ideal for tight urban spaces with minimal traffic disruption.
2. Quick - Swap Attachments
It supports sweepers (5,000 ㎡/h), snow plows, milling tools (10 cm depth), and aerial platforms (8 m lift) for all - around road work.
3. High Efficiency
It offers faster sweeping, quicker marking removal, and fewer work shifts than traditional methods.
4. Built for Harsh Conditions
It performs in 50°C heat, handles 30° slopes, and operates below 65 dB for night work.
5. Full Lifecycle Support
Seasonal rental plans and localized parts centers ensure prompt and reliable service.
Loader Skid Technical Specification
Model | 1605A | ||
Engine model | Perkins | Overall operating height | 4234 mm |
1104D-44T | |||
Bore×stroke | 105×127mm | Height to bucket hinge pin | 3295 mm |
Rated power | 74.5 kw | Height to top of cab | 2080 mm |
Rotating speed | 2200rpm | Height to bottom of level bucket | 3100mm |
Number of cylinders | 4 | Overall length without bucket | 2878 mm |
Displacement | 4.4 L | Dumping angle at maximum height | 42° |
Max. Speed | 10.2/20.4km/h | Dumping height | 2540 mm |
Vacuum tire | 12-16.5 | Dumping reach | 850 mm |
Operating load | 1600kg | Rollback of bucket on ground | 27° |
Max. Loading | 3200kg | Rollback of bucket at full height | 96° |
Lifting | Vertical | Wheelbase | 1218 mm |
Bucket lifting force | 2500kg | Ground clearance | 218 mm |
Arm lifting force | 2900kg | Angle of departure | 26° |
Total cycling time | ≤11.2s | Turning radius front without bucket | 1540 mm |
Bucket capacity | 0.55m³ | Front turning radius | 2200 mm |
Pressure of working system | 210bar | Rear turning radius | 1710 mm |
Rated flux | 88L/min | Tread width, centerline to centerline | 1530 mm |
High flow flux (optional) | 158 L/min | Width between outside of two wheels | 1864 mm |
Fuel tank capacity | 82L | Bucket width | 1980 mm |
Self-weight with bucket | 4260kg | ||
Loader Skid Details

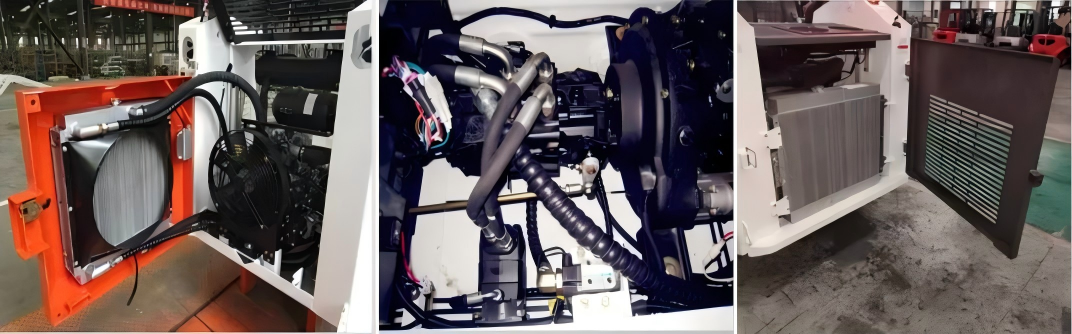

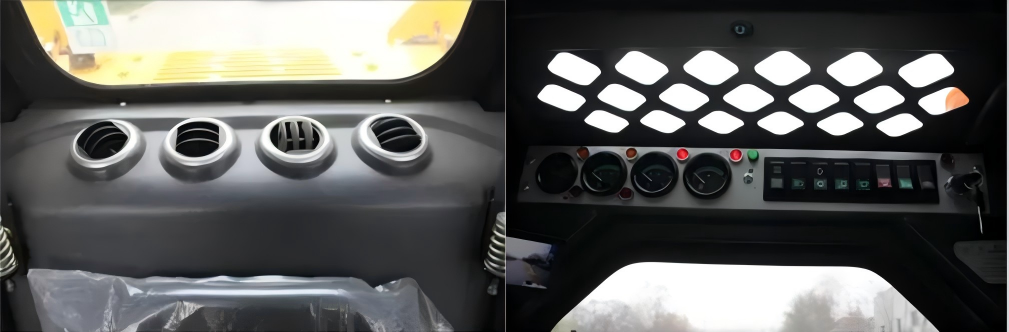

Air Conditioner & Fan |
|
Engine Radiator & Hydraulic Main Pump |
|
Assembly Productio
Our park covers an area of over 53,333 square meters (equivalent to more than 8 standard football fields), laying a solid foundation with its vast space and equipped with advanced skid steer loader production lines. From spare parts production to complete machine assembly and delivery, we implement scientific management and control throughout the entire process and implement scientific operations across the entire chain, accurately supervising every production process and strictly controlling every detail. By relying on the efficient operation of professional intelligent manufacturing, we not only ensure equipment quality and delivery efficiency, but also build reliable equipment and demonstrate strong intelligent manufacturing capabilities.
FAQ
How do we ensure quality?
1.Pre-production samples for approval.
2.Final inspection before shipment.
Why choose us?
1.40+ years of tech experience.
2.Full manufacturing capabilities (machining, welding, stamping, coating, precision moulds).
3.Advanced design center and strong R&D team.
TEVIS skid steer loaders are redefining the standard of highway maintenance, offering smarter and more efficient solutions for highway authorities at all levels.
